Model
GA-B12020

Item specifics

Nominal Capacity
19.8Ah
Rated Energy
253Wh
Rated Voltage
12.8V
Weight
3.5kg
MOQ
200pcs

Product review

Description

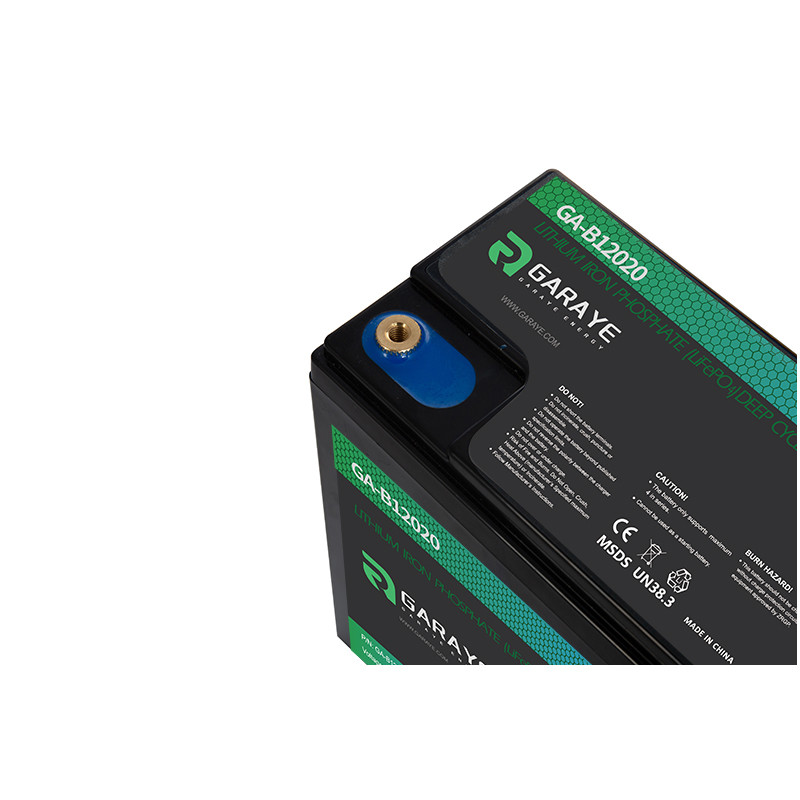

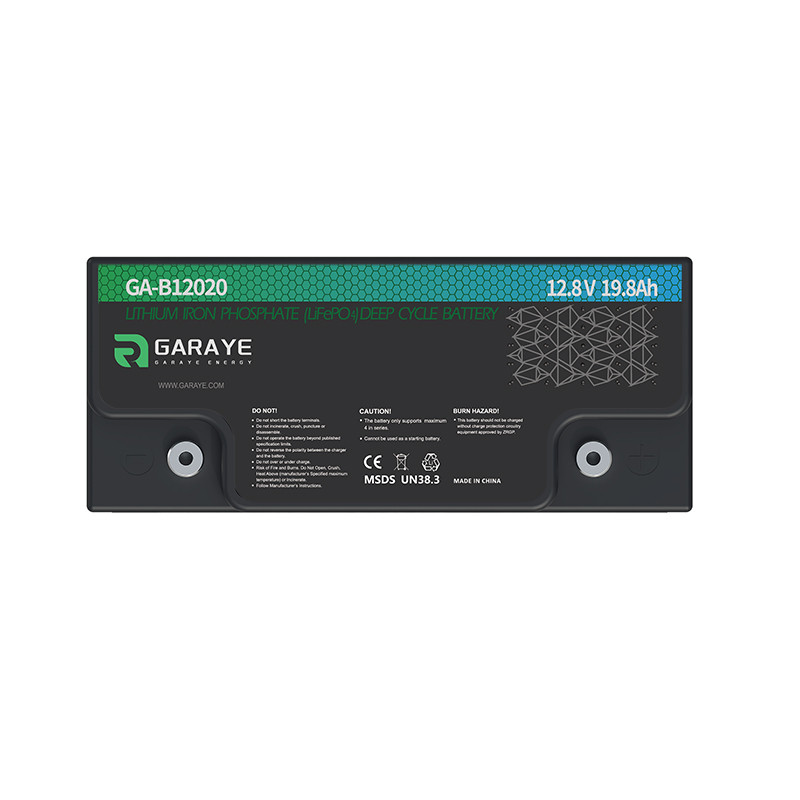

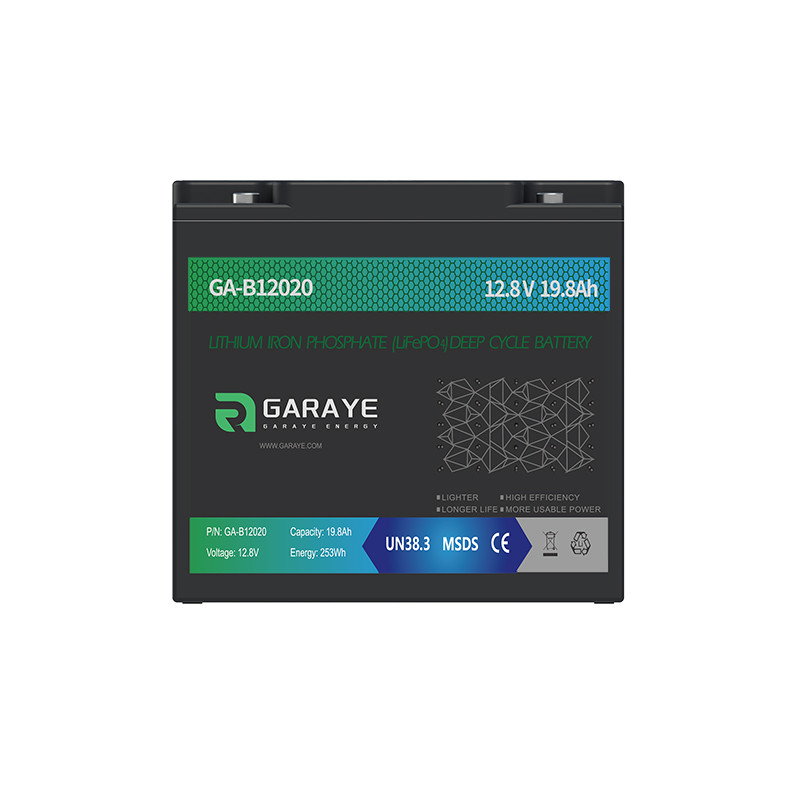

GA-B12020 | Replacement Lithium Battery | GARAYE

Description:
Glory 12V lithium iron phosphate battery pack is designed and manufactured with features of high energy density, safe and reliable, long service life, etc. With its unique advantages, it is widely used in caravans, tourist coaches, electric two-wheelers, tricycles, emergency lights, security monitoring, and other power supply equipment. The universal dimensions with excellent performance provide the user with an ideal drop-in replacement solution for the traditional lead-acid battery.
Features:
It is composed of LiFePo4 battery cells in series and parallel, which have the characters of good safety performance, high energy density, and long cycle life.
Using laser welding craft, with a high degree of automation, low internal resistance, high energy efficiency, to ensure the welding quality.
Supports 4pcs in series connection for 12Vdc platform, 2pcs in series for 24Vdc platform, which provides a wide range of applications.
Built-in intelligent BMS optimizes the performance and safety of the battery by automatically balancing cells and protecting them from overcharge, over-discharge, over current, short circuit, high and low temperature protection functions, graded alarm and wireless monitoring functions.
Using the lithium-ion battery, green and eco-friendly, low lifetime cost.
Independently developed products, we can arrange experienced engineers to provide technical support
Customized solutions can be provided according to the user scenarios.
BlueTooth Support, Through the self-developed ZRGP mobile application, you can remotely monitor the operating status of the battery via Bluetooth, and support both Android and IOS.

No. Item Unit Value Remark
01 Cell Model - LFP26650-3.2V 3.3Ah
02 Combination Mode - 6P4S
03 Nominal Capacity Ah 19.8
04 Rated energy Wh 253
05 Initial Internal Resistance <80 AC 1KHz
06 Rated Voltage V 12.8

07

Charge Cut-off Voltage

V

14.6
Unit cell max. charge
voltage not exceed 3.65V

08

Discharge Cut-off Voltage

V

10
Unit cell min. discharge
voltage not lower than 2.5V
09 Standard Charge Current A 4 0.2C
10 Max. Charge Current A ≤10 1C
11 Standard Discharge Current A 10
12 Max. Discharge Current A ≤20
13 -20℃ Discharge Capacity ≥65% Nominal Capacity

14
Cycle life - ≥2000 times DOD>80%

15

Operating Temperature

-0~+45℃ Charge
-10~ +60℃ Discharge
16 Open Circuit Voltage V 12.8-13.6
17 Shell type - ABS Plastic Shell
18 Weight kg 3.5 About
19 Dimension mm 180(L)*76(W)*168(H) Exclude wiring terminal

Up to 10 Times Life
The life span of our lithium battery is 10 times longer than lead acid battery.
60% Faster Charge
Our batteries can be charged to 100% full in one hour
70% Lighter in Weight
Lithium-ion batteries are one-third the weight of lead acid batteries
