Model
Glory Cabinet 15050D

Item specifics

Main Control Module
GA-MC650-300M
Lithium Battery System
GA-FS537280-168S
Weight (Approx.)
1500kg
Dimensions (L*H*W))
1115 x 2070 x 1276 mm
Communication
RS485, CAN
Battery Type
LFP (LiFePO4)

Product review

Description

Glory Cabinet 15050D | Microgrid Energy Storage System | GARAYE

Description:

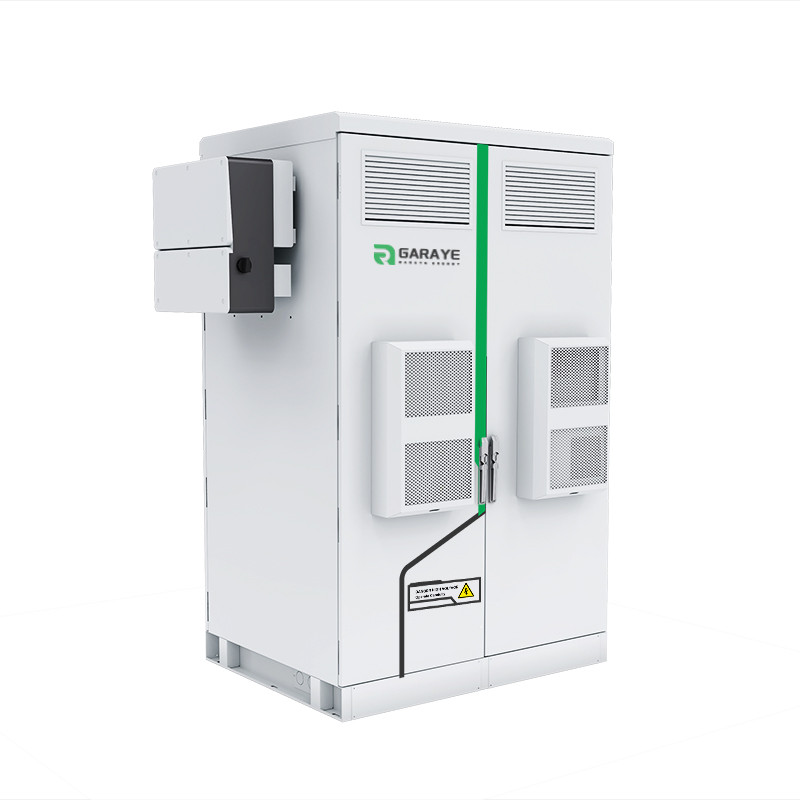

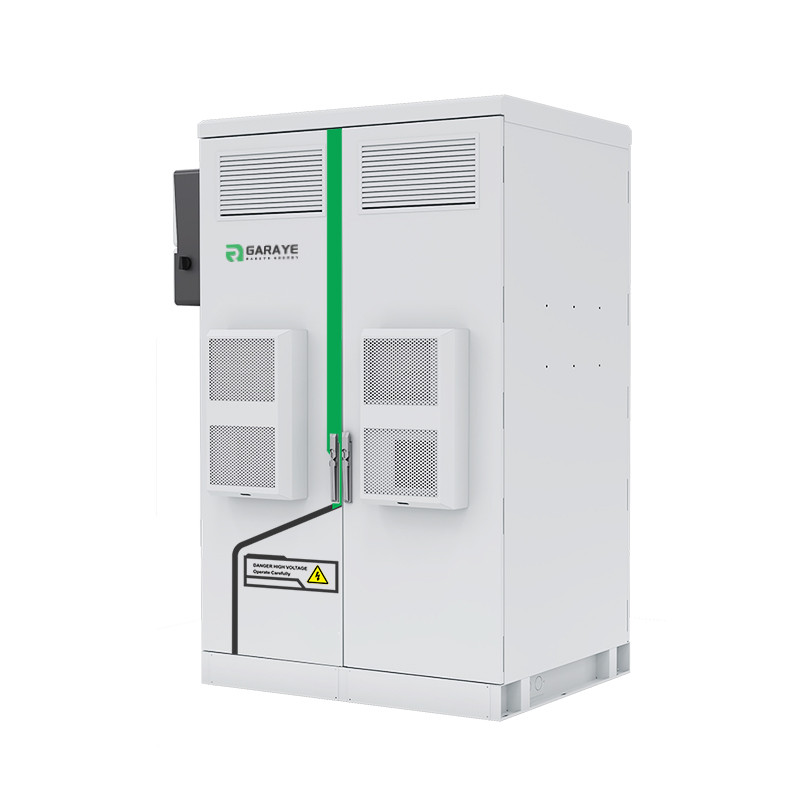

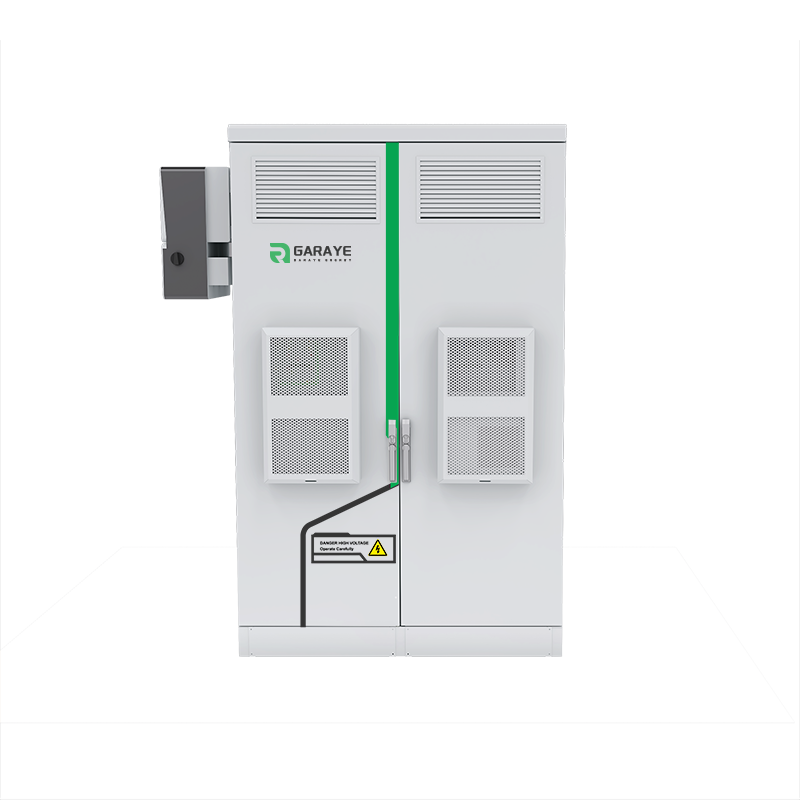

The Glory Cabinet 15050D product is a high-voltage lithium iron phosphate battery storage system independently developed by Glory Energy (Shenzhen) Co., Ltd. The rated voltage of the single module is 25.6V, series connection is allowed up to 21 modules of 537.6V. Parallel of multi systems is supported.
Features:
Adopt high safety, long life, excellent performance LiFePO4 prismatic cells;
Over 4000 times of cycle life;
Intelligent BMS to ensure a safe reliable operation;
Parallel on cabinet level available;
Multiple communications including RS485, CAN;
Modular rack design for easier installation and smaller landscape.

No. Items Parameters
1 Main Control Module ZR-MC650-300M
2 Lithium Battery System ZR-FS537280-168S



3



Input
Maximum PV Array Voltage (V) 1100
MPPT Voltage Range (V) 300~850
Maximum Number Of Parallel
PV Array Inputs

16
Rated Branch Current(A) 12
Maximum Branch Current(A) 13




4




DC-DC
Output
Voltage Range (Vdc) 300~860
Current Range (A) 0-25
Rated Current (A) 20
Voltage Regulation Accuracy <±0.5%(300Vdc~860Vdc, 0~20MHz)

Precision Of Steady Current
≤± 1% (output load 20% ~ 100% of the
rated range)
Load Regulation ≤±0.5%
Start overshoot ≤±3%
10 Weight (Approx.) 1500kg
11 Dimensions (L*H*W)) 1115 x 2070 x 1276 mm
12 Communication RS485, CAN
13 Cycle Life 4000 times@80%DOD
14 Designed Calendar Life ≥10 years

15

Safety Function
Over-charge, Over-discharge, Over-current, Low/High-temperature, Low-voltage,
Short-circuit Protections
16 Parallel Capability Maximum 10 units (Recommended 6 units)
17 Level Of Protection IP55
18 Cable Outlet Bottom
