Model
Glory Cabinet 1506-DA

Item specifics

Model
GA-MC100-200E
Operation Voltage Range
18Vdc~72Vdc
Max. Operation Current
Charge:≤300A Discharge: ≤150A
Weight
12kg±0.5kg
Rated Energy
15.36kWh
Battery Type
LFP (LiFePO4)
IP Grade
IP54
Net weight (Approximate )
230kg

Product review

Description

Glory Cabinet 1506DA | Microgrid Energy Storage System | GARAYE

Description:

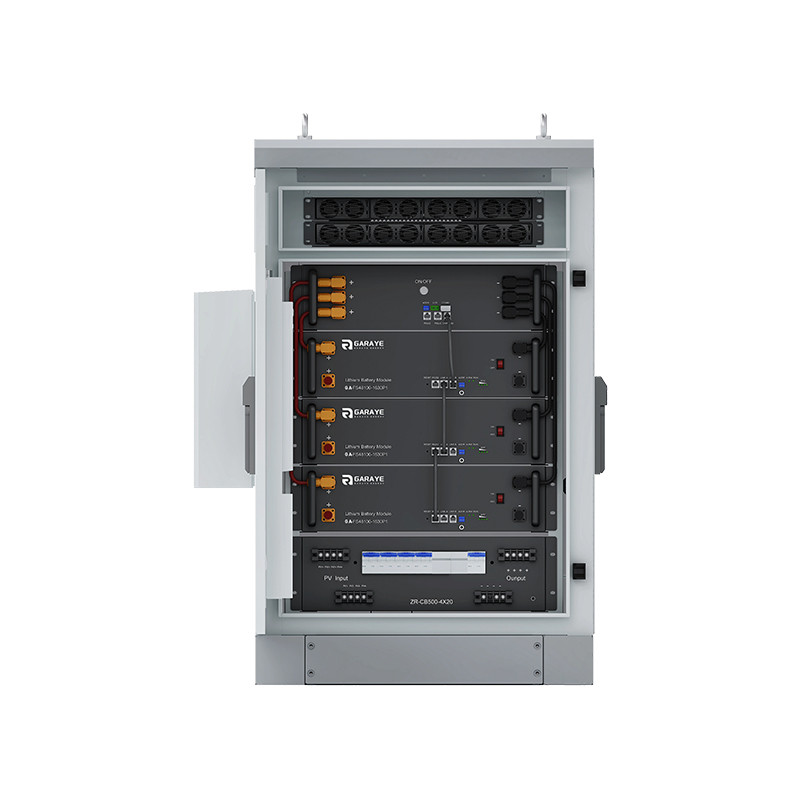

This product is a DC Energy Storage System developed and designed by Glory Energy (Shenzhen) Co., Ltd. The system mainly cooperates with low-voltage solar power plants to increase sales or self-use. It is mainly composed of a photovoltaic controller, DC/DC converter, battery modules, master control module, and power distribution module. The battery module adopts lithium iron phosphate with high safety performance and long life. It has the characteristics of high integration, substitution, intelligence, and convenient installation. It also supports the parallel operation of multiple systems, to fulfill larger storage capacity and load capacity. The system output voltage can be set arbitrarily from 250Vdc-400Vdc to meet the requirements of the operating voltage range of various photovoltaic inverters on the market.
Features:
Adopt high safety, long life, excellent performance LiFePO4 prismatic cells;
Over 4000 times of cycle life;
Intelligent BMS to ensure a safe reliable operation;
Remote Monitoring GPS/GPRS(Opention)
Support PV input

Item Value
Rated Energy 15.36kWh
Battery Type LFP (LiFePO4)
IP Grade IP54
Dimension(W*H*D) 680mm*1100mm*873mm
Net weight (Approximate ) 230kg
Operating temperature -20℃ ~ 40℃
Humidity 0 ~ 95% (Non-condensation)
Altitude 0~2000m
Heat-dissipating method Air conditioning + air cooling
Heating Method Air conditioning
Remote Monitoring GPS/GPRS(Opention)
Safety standards GB4943-2001,IEC60950-1,EN60950-1,UL60950-1
EMC EN55022, CLASS A, IEC61000-4-2, IEC61000-4-5
Input
PV input voltage range 120Vdc-425Vdc(Power Up Voltage>160Vdc)
Max. PV charge current 17A*4(Max 68A)
Rated Power 12000W
PV Fuse 20A
Output
Adjustable range of output voltage 250Vdc-400Vdc
Current 3.95A*4(Peak 110%)
Nominal Power 6000W
