Model
Glory Container

Item specifics

Grid Voltage
400Vac
Grid Frequency
50/60Hz (±2.5Hz)
Rated Power
50kW/100kW
Rated Energy
96.8kWh-387kWh
Protection Level
IP54
Working Temp Range
-10℃~50℃
Humidity Range
0~95%
Altitude
3000m

Product review

Description

Glory Container | Microgrid Energy Storage System | Glory

Description:

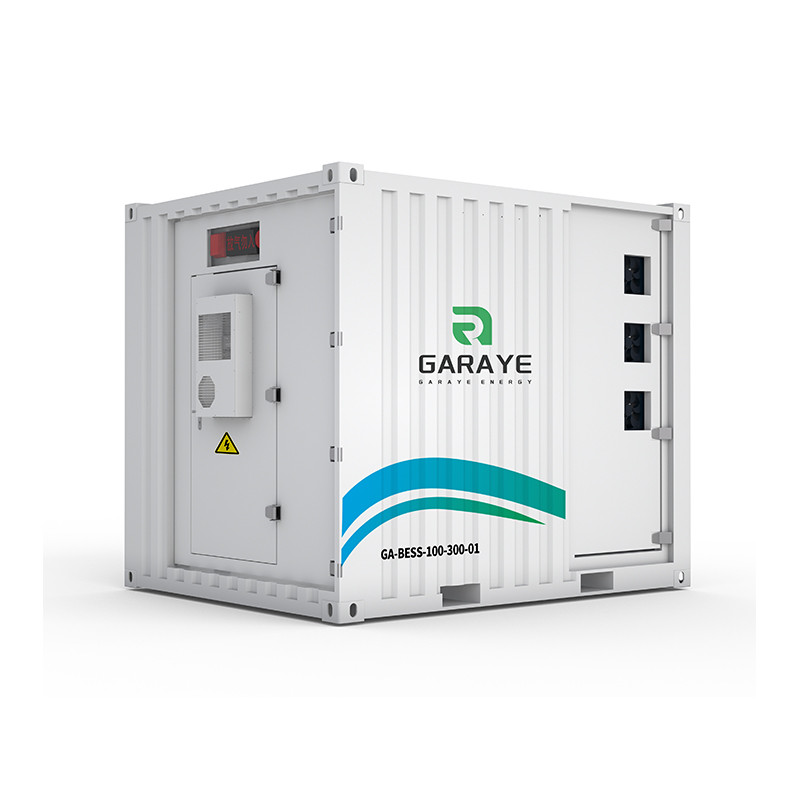

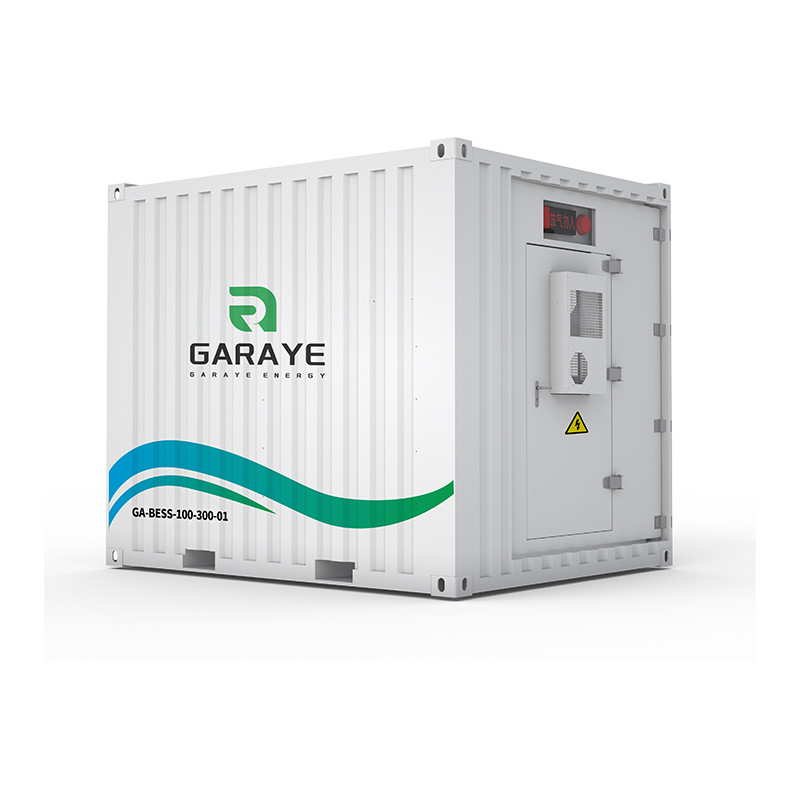

Electrify your community with Glory Container microgrid energy storage system, all-in-one design adopts lithium battery system + PCS in a 10ft container.
Features:
Optical storage integrated system to meet microgrid applications;
Small size, flexible deployment;
Simple transportation and maintenance, with classification society certification, meeting shipping requirements;
Unattended system, remote monitoring;
Provide a variety of configurations to meet different demands;
Complete certification and protection, applicable to multiple national grid systems;
In combine with diesel generators, to achieve seamless switching;

Regular Technical Features
Grid Voltage 400Vac
Grid Frequency 50/60Hz (±2.5Hz)
Rated Power 50kW/100kW
Rated Energy 96.8kWh-387kWh
Protection Level IP54
Working Temp Range -10℃~50℃
Humidity Range 0~95%
Altitude 3000m
Battery Cluster (Cabinet) Features
Model ZR-EP100-02
Chemistry LiFePO4
Rated Voltage 460.8Vdc
Rated Energy 96.7kWh
Size(W*H*D) 2991mm ×2591mm×2438mm
Weight 4.7t-6.7t
Batteries Connection 12 sets of ZR-FE38210-1235R1 in series
Energy Converter Features
Qty of Battery Cluster(s) 1 or more 2 or more
Model ZR-BP50-02 ZR-BP100-02
Battery Voltage Range 250~520V
Maximum DC Current 130A 260A
PV Voltage Range 520~900V
PV Maximum Current 220A 440A
Connection 3P4S
Power Factor -1~1
Communication RS485,CAN,Ethernet
Isolation Power-line Frequency Isolation

Certifications
CE LVD,IEC 62109
EMC, AS/NZS61000
AS4777

Optical Storage Integrated System
 Meets the total requirement in normal microgrid applications.
Customised Container
Simple transportation and maintenance, with classification society certification, meeting shipping requirements.
Cloud Connection
Unattended system, remote monitoring
