Model
Glory CPS-U 40/60/80

Item specifics

Module Configuration
10S1P
Nominal Capacity
40Ah/80Ah/120Ah
Nominal Energy
20.48kWh/40.96kWh/61.44kWh
Chemistry
LiFePO4
Nominal Voltage
512Vdcor±250Vdc
Recommend Charging Voltage
568V
Max. Charging Voltage
584V
Discharge Cut-off Voltage
480V
Max. Charging Current
40A/80A/120A
Max. Discharging Current
200A/400A
Weight (Approx.)
470kg/650kg/850kg
Dimensions (W*H*D)
600*870*2000mm
MOQ
20pcs

Product review

Description

Glory CPS-U | Lithium UPS Battery System | GARAYE

Description:

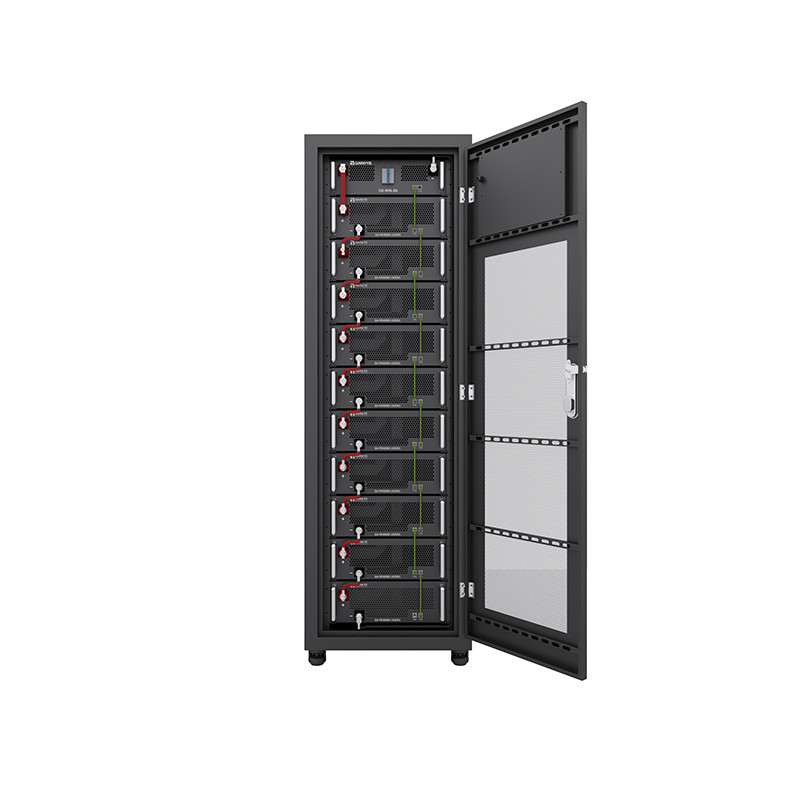

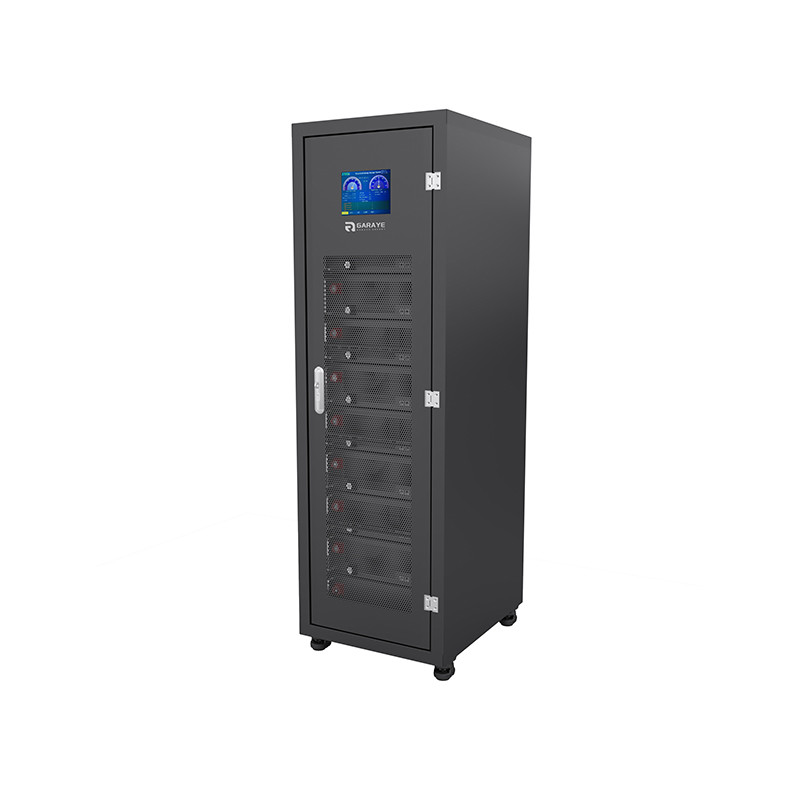

The Glory CPS-U series product is a high-voltage lithium iron phosphate battery storage system independently developed in-house by Glory Energy (Shenzhen) Co., Ltd. The product is in combination with data center application scenarios, the rated voltage of the system is 512Vdc or ±250Vdc, and the maximum support continuous discharge current is 200A and 400A, which meets the requirements of 50kVA-200kVA power supply. Parallel of multi systems is supported. It’s an idea solution for power backup scenarios such as large data centers, IDC equipment rooms, enterprise data centers, disaster recovery backup centers, etc.
Features:
Adopt high safety, long life, excellent performance LiFePO4 prismatic cells;
Support up to 6C continuous discharge;
Over 3500 times of cycle life;
Intelligent BMS to ensure a safe reliable operation;
Parallel on cabinet level available;
Multiple communications including RS485, CAN, SNMP;
Modular rack design for easier installation and smaller landscape.

Product Details
No. Items Parameters
1 Model PowerBase Uranus 40 PowerBase Uranus 80 PowerBase Uranus 120
2 Main Control Module ZR-MIN-R0

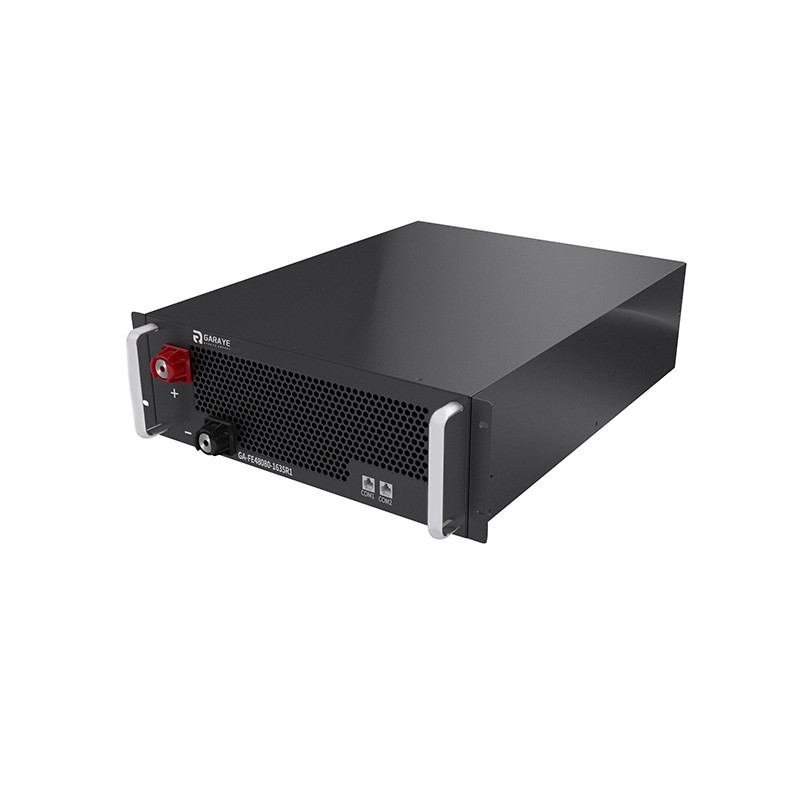

3 Battery Module Type ZR-FE48040-1630R1 ZR-FE48040-1630R1 ZR-FE48040-1630R1
4 Module Configuration 10S1P
5 Nominal Capacity 40Ah 80Ah 120Ah
6 Nominal Energy 20.48kWh 40.96kWh 61.44kWh
7 Chemistry LiFePO4

8

Voltage
Nominal 512Vdc or ±250Vdc
Recommend Charging 568V
Max. Charging 584V
Discharge Cut-off 480V
9 Current Max. Charging 40A 80A 120A
Max. Discharging 200A 400A 400A
10 Weight (Approx.) 470kg 650kg 850kg
11 Dimensions (W*D*H) 600*870*2000 mm
12 Communication RS485, CAN, SNMP
13 Cycle Life ≥3500 times
14 Designed Calendar Life ≥10 years
15 Safety Function Over-charge, Over-discharge, Over-current, Low/High-temperature, Low-
voltage, Short-circuit Protections
16 Parallel Capability Maximum 10 units (Recommended 6 units)
17 Cable Outlet Top-back

Adopt high safety, long life, excellent performance LiFePO4 prismatic cells
With a designed service life of 10 years, capable of providing and powering in full power.
Support up to 6C continuous discharge
Higher C rate allows the system to back-up data information faster than minimum requested.
Intelligent BMS to ensure a safe reliable operation
Built-in self-developed smart BMS, which ensures the ability to conduct adjustments.
